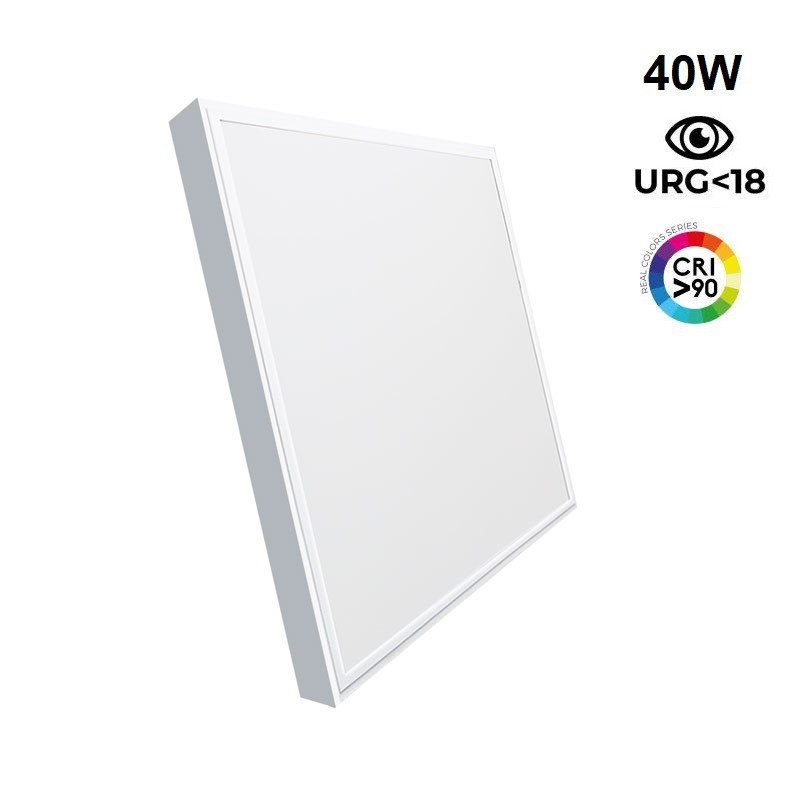

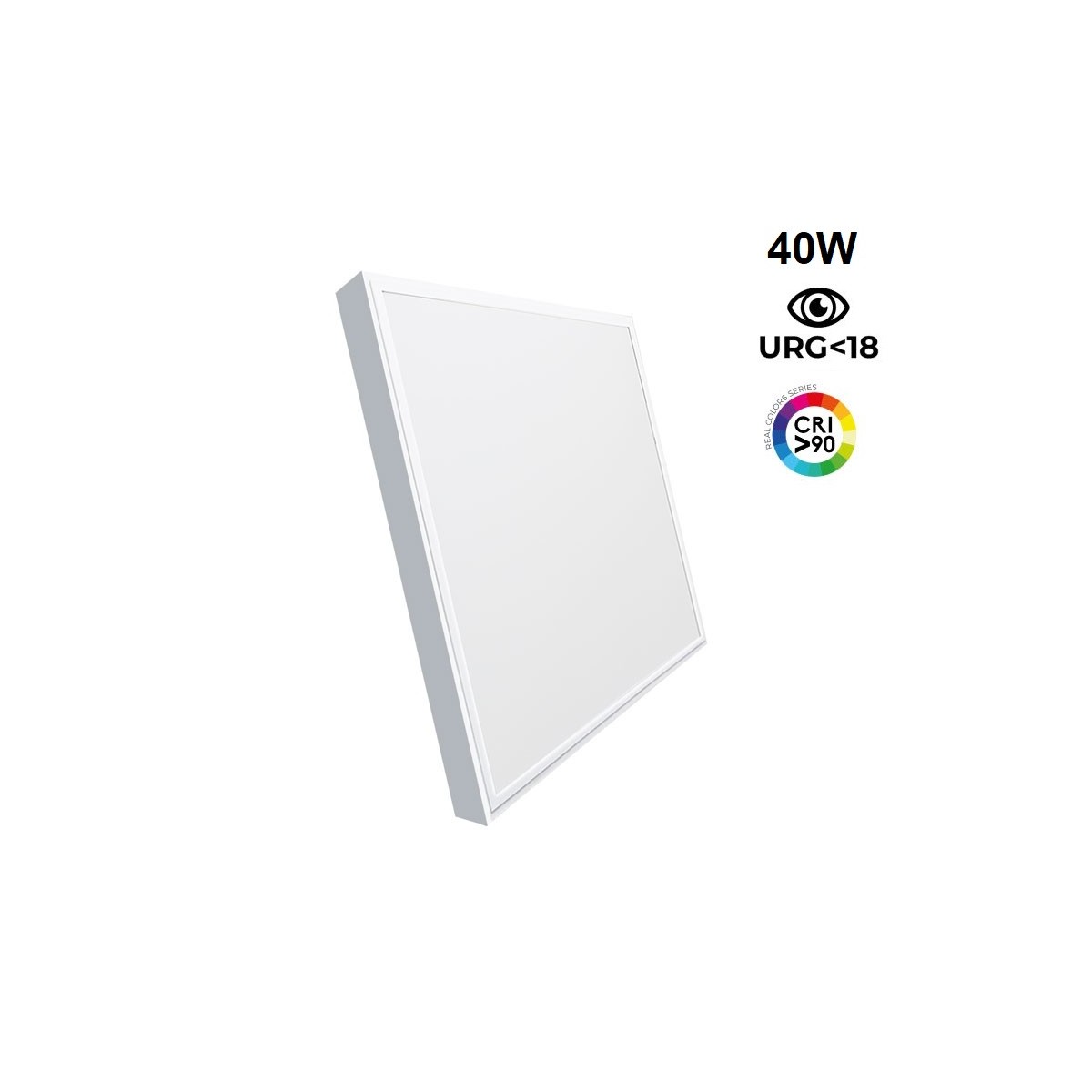

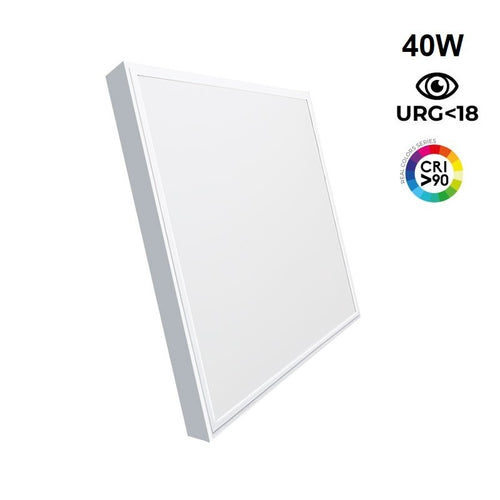

Slim surface LED panel 60x60cm - OSRAM Driver - 40W - UGR18 - CRI90 - With mounting KIT
LED panel surface 60X60 UGR18

Slim surface LED panel 60x60cm - OSRAM Driver - 40W - UGR18 - CRI90 - With mounting KIT

SKU:B4292-UGR18-BN
Has superado el límite de unidades
In stock 32 unidades

The OSRAM surface mounted LED panel with driver features a sleek, ultra-slim design and state-of-the-art technology to provide powerful, uniform, neutral white (4000K) illumination. It is a high efficiency luminaire with a power of 40W and a luminous flux of 4000 lumens.

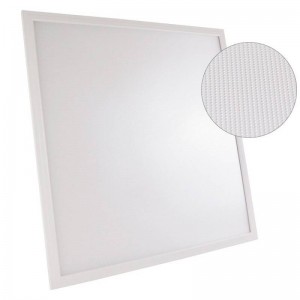

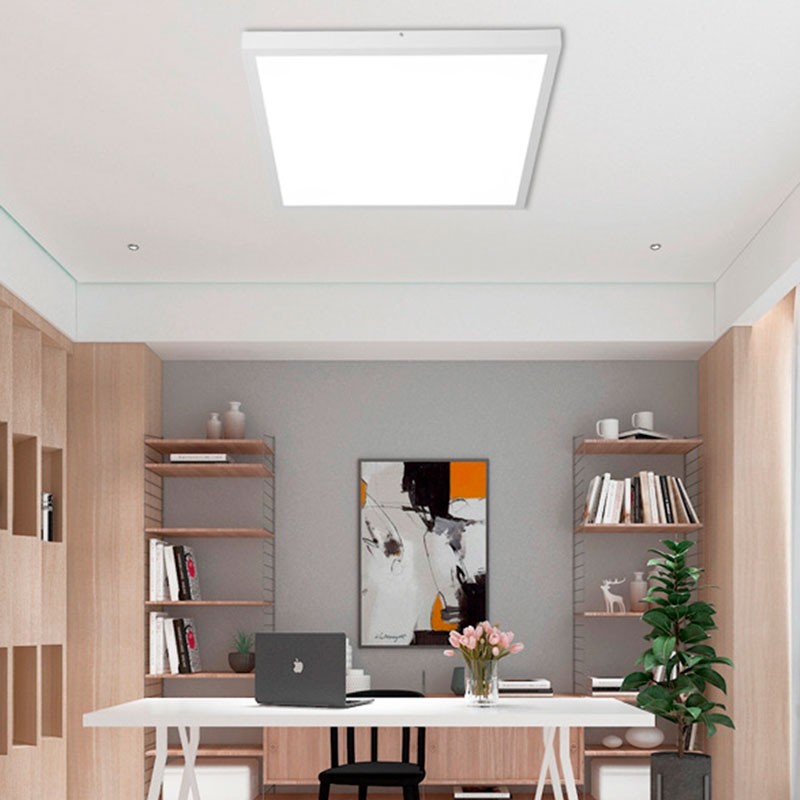

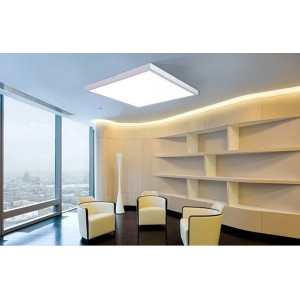

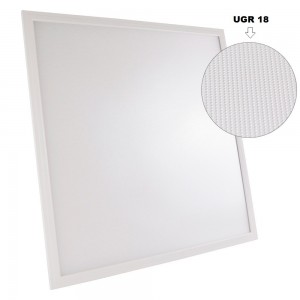

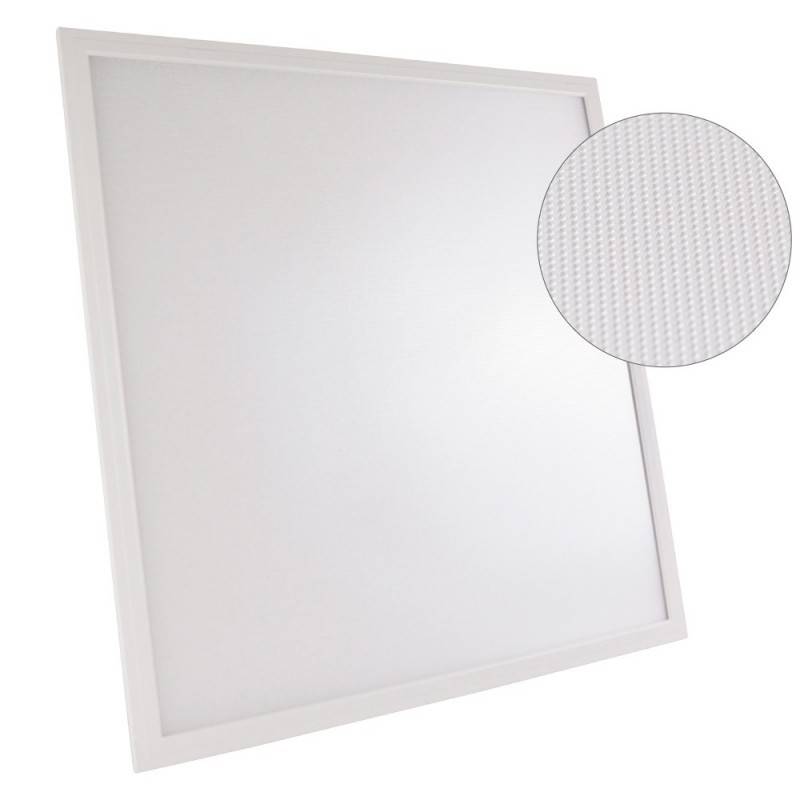

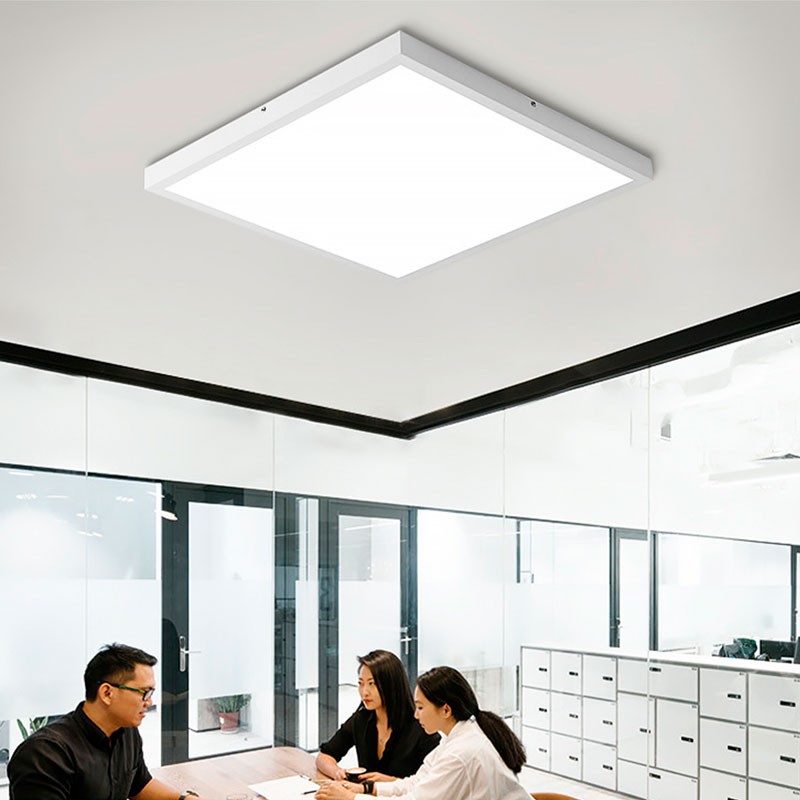

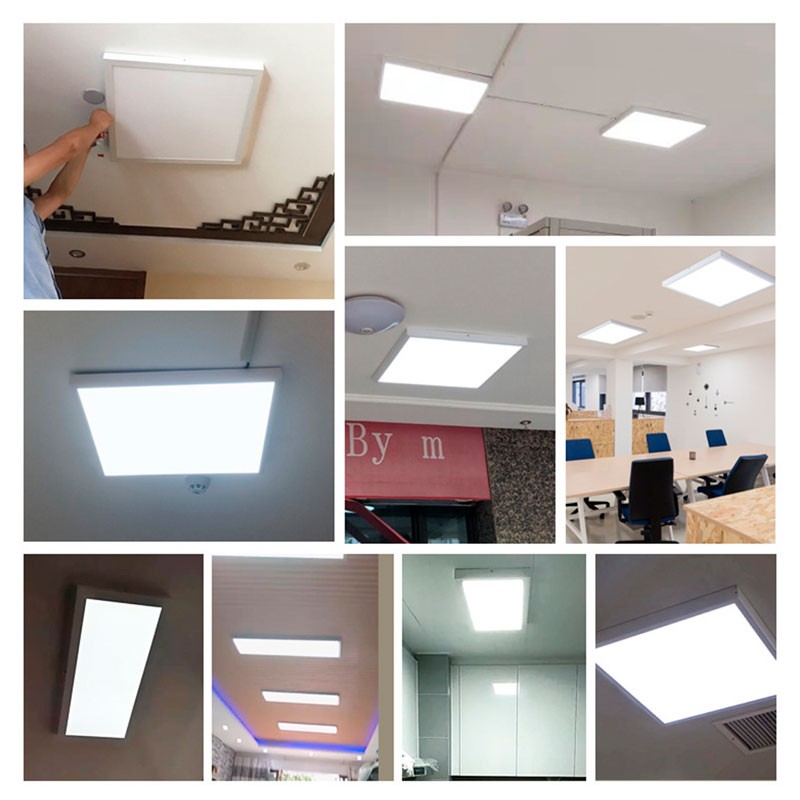

It incorporates a micro-prismatic diffuser that ensures glare-free illumination (UGR=18), ideal for offices, conference rooms, schools or hospitals.

Thanks to its high color rendering index (CRI>90) it reproduces colors very similar to natural light.

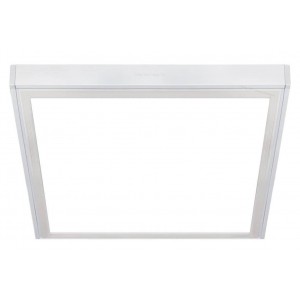

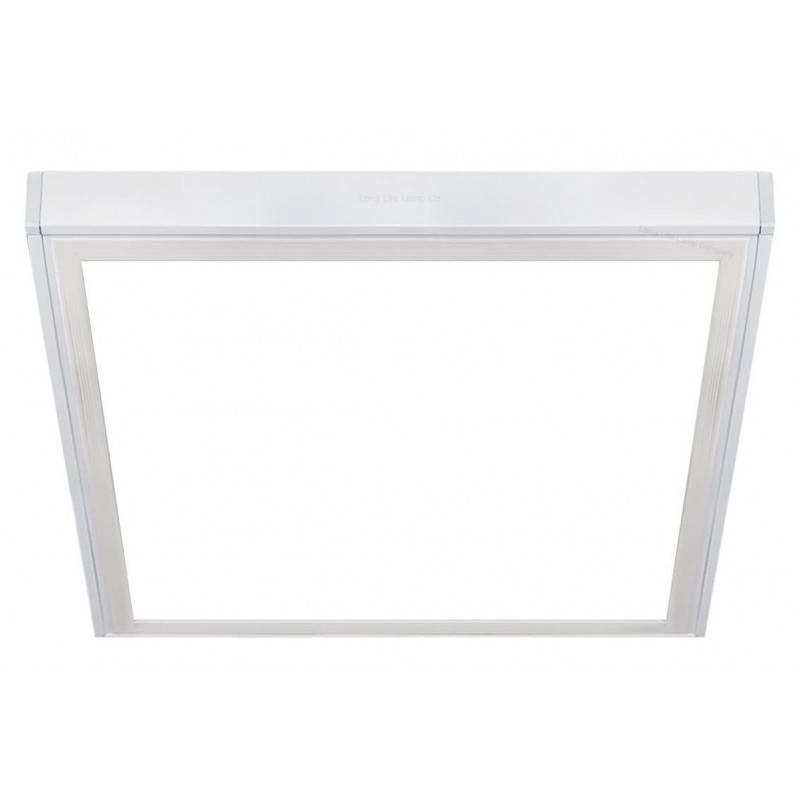

Includes surface mounting kit with all accessories for easy and fast installation.

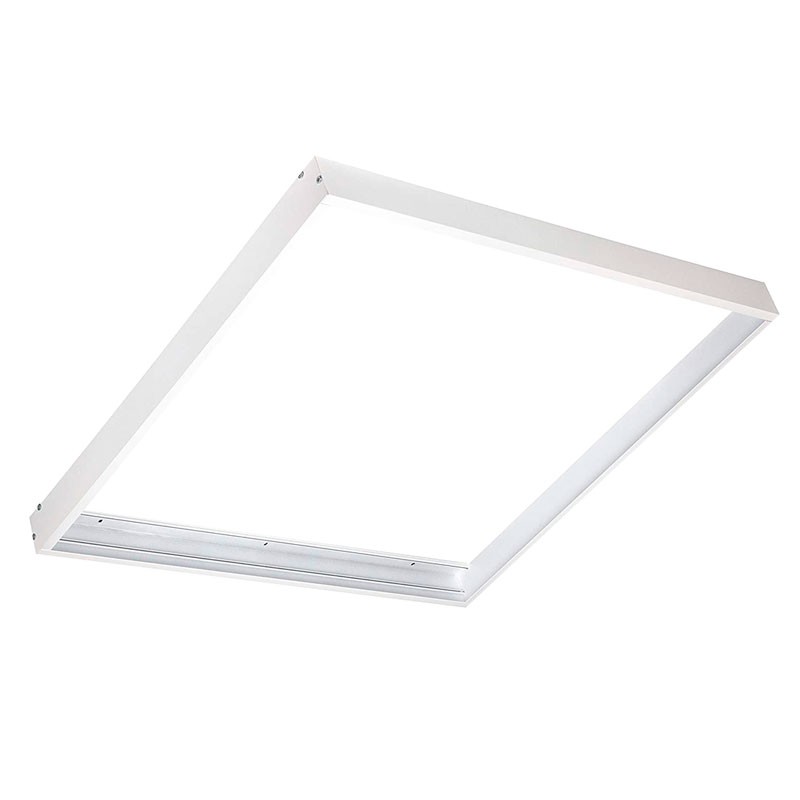

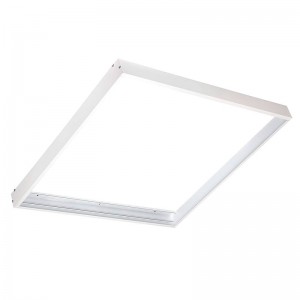

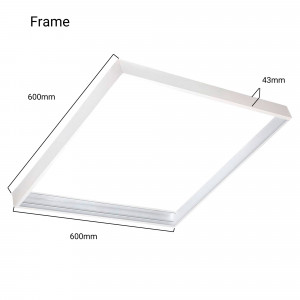

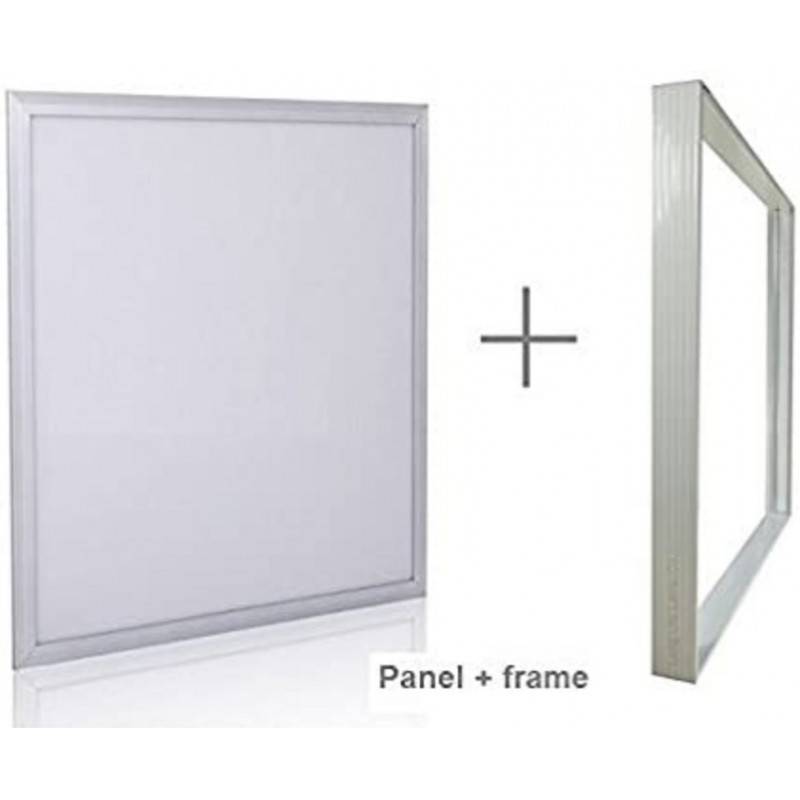

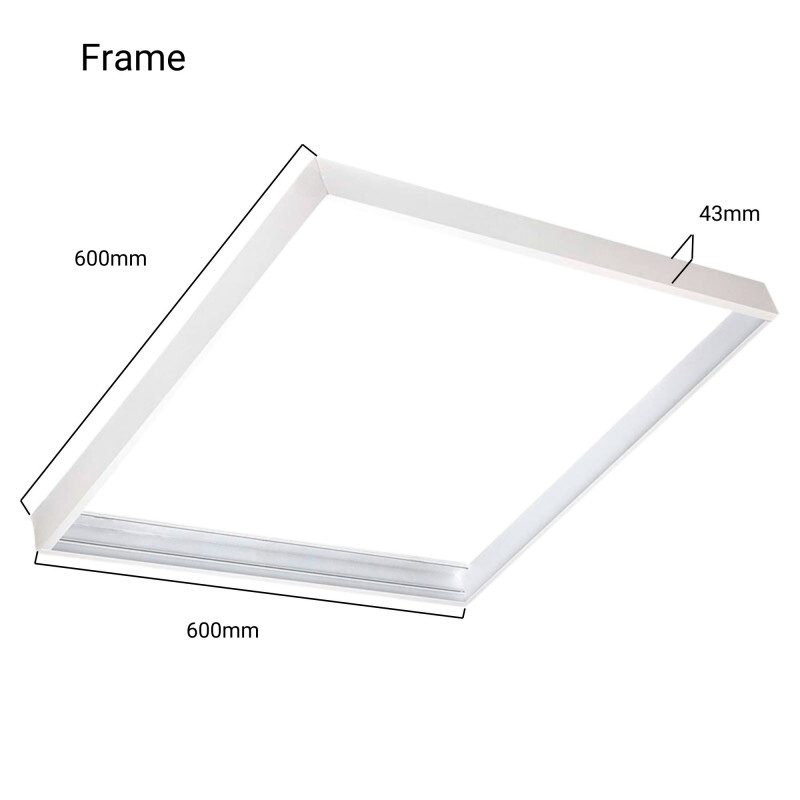

60x60cm slim LED panel kit (Reference B5235-UGR18) + surface mounting frame (mounting accessories included).

The panel has an ultra-slim, modern and elegant design, adaptable to any environment.

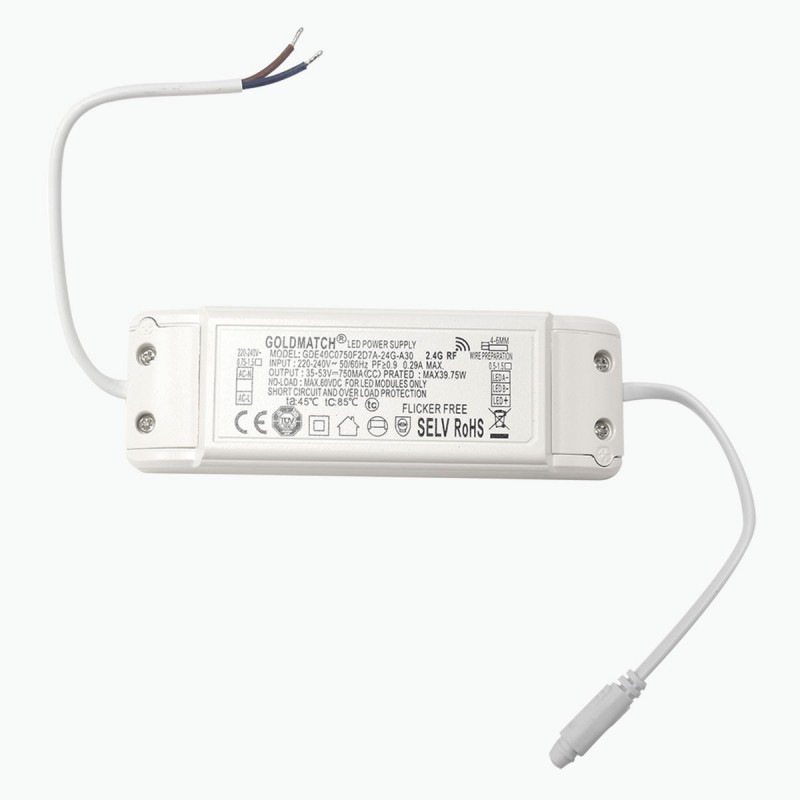

It incorporates a high quality OSRAM driver that ensures immediate start-up and homogeneous, flicker-free illumination.

Its prismatic diffuser prevents glare, guaranteeing maximum visual comfort (UGR=18), a condition that is especially important in work or study environments, where low UGR levels have been shown to improve concentration, work performance and general well-being.

It is a high brightness product that emits a uniform light at an angle of 160°. It has 40W of power and a high color rendering index (CRI>90), allowing to visualize colors with great fidelity, similar to natural light.

Its high efficiency also allows significant energy savings compared to traditional luminaires.

Main characteristics of the product:

  • Extra flat design
  • Nominal voltage: 220-240 V/AC
  • Power: 40W
  • Lumens: 4000 lm
  • Surface mounting

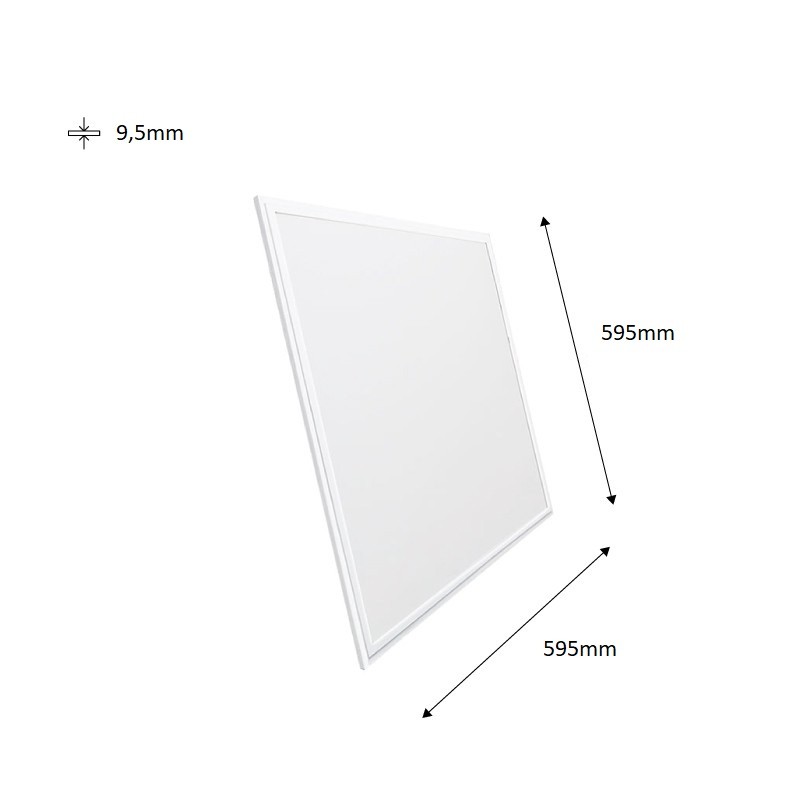

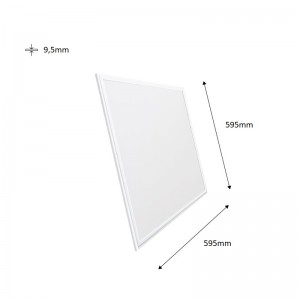

  • Dimensions: 595 x 595 x 9,5 mm
  • Neutral white shade (4000K)
  • UGR=18
  • CRI>90
  • Indoor use: IP20



Nominal Voltage (V)
220 - 240 V/AC
Power (W)
40
Lumens (Lm)
4000
Kelvin (K)
4000
Lifetime (h)
30000
IP
IP20
Dimensions (mm) Lxlxh
595x595x9,5
Frequency (Hz)
50 - 60
Hue
Neutral white
Sensor
No
CRI
90-95
UGR
UGR18
Dimmable
Yes, by replacing the driver
Driver
External
Mounting
Surface
Orientable
No
Diffuser material
Polycarbonate
Use Outdoor
No
Temperature range
-0°C ~ +30°C
Frequency of use
Intensive
Energy efficiency class
A+ (2021)
Certificates
CE
ROHS
Warranty
According to legal guarantee: 2 years
LED Panel dimensions
60x60
