40W LED surface panel adjustable by CCT with KIT

LED slim CCT surface panel 60 x 60- Dimmable with remote control - 40W - With mounting KIT

SKU:B4292-CCT
Has superado el límite de unidades
In stock 1259 units
Data sheet

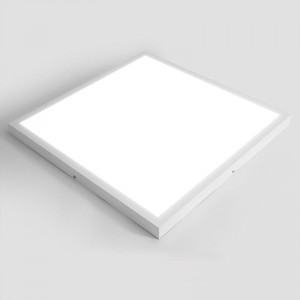

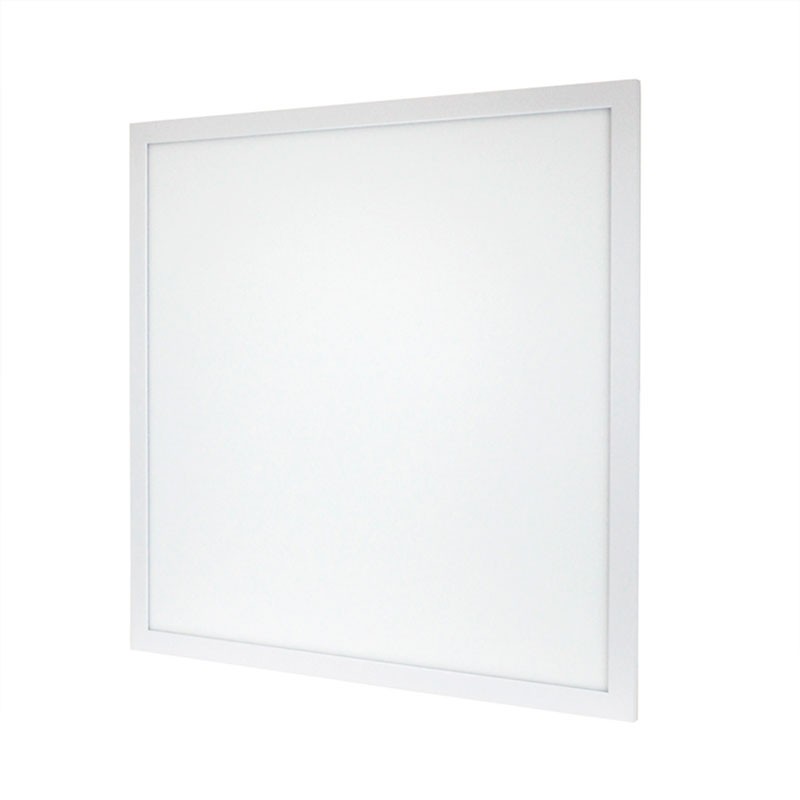

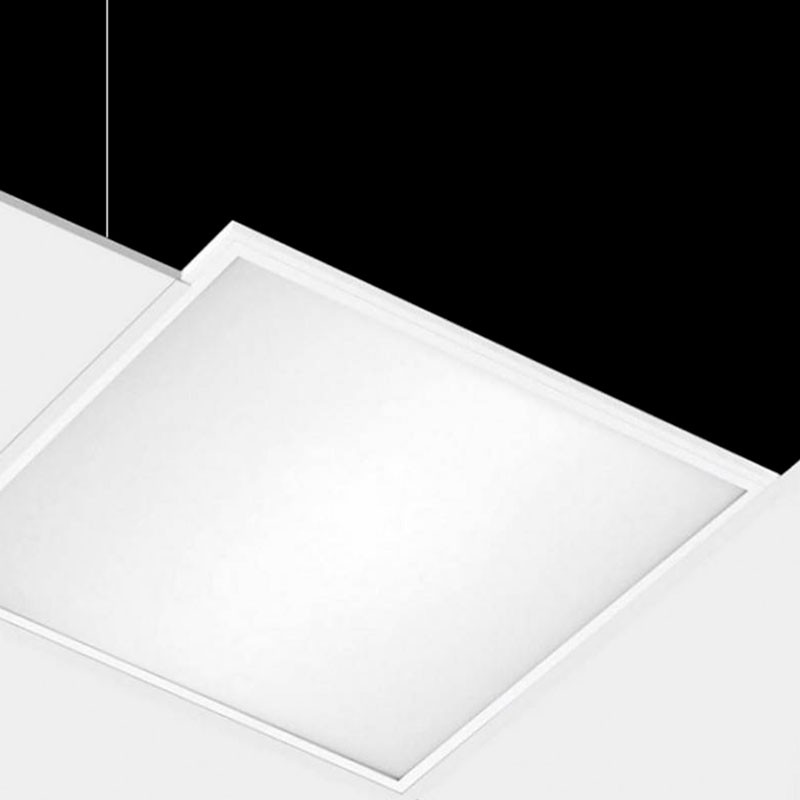

The 60x60cm slim CCT surface mounted LED panel light features a sleek, ultra-slim design and state-of-the-art technology to provide powerful, uniform and glare-free illumination.

It is a high efficiency luminaire (100lm/W) with a power of 40W, dimmable intensity up to 4000 lumens and a CRI>80.

It incorporates a remote control that allows to control the intensity and color temperature from warm white to cool white, thanks to its CCT system. This remote control requires 2 AAA batteries (not included).

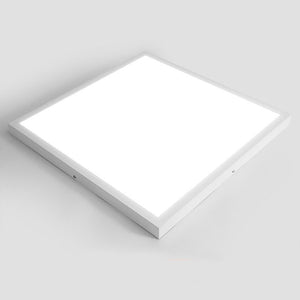

It includes kit for surface installation with all accessories for easy and fast mounting.

Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  comercial@barcelonaled.com

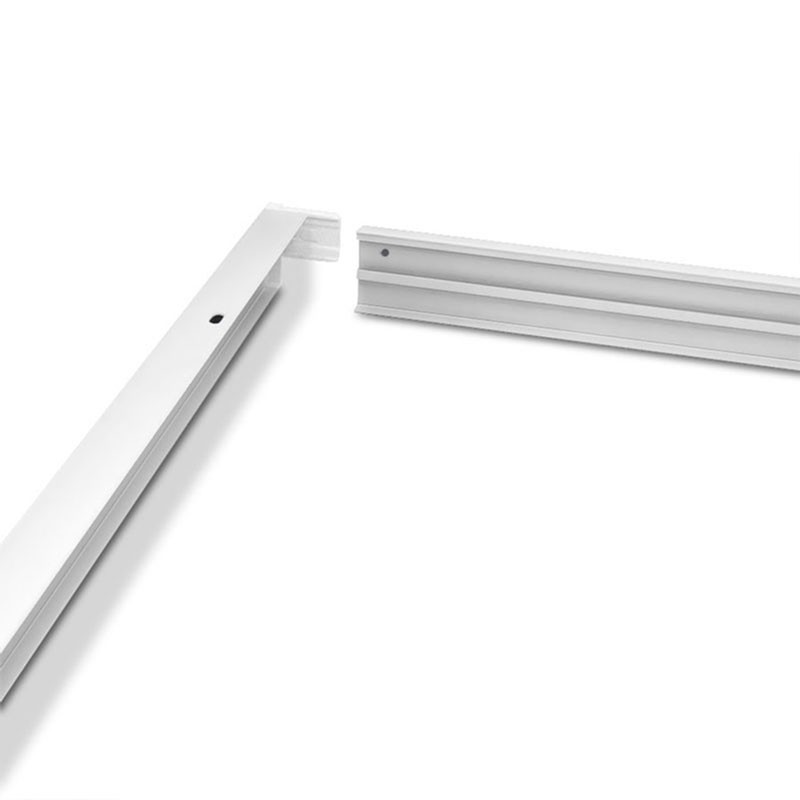

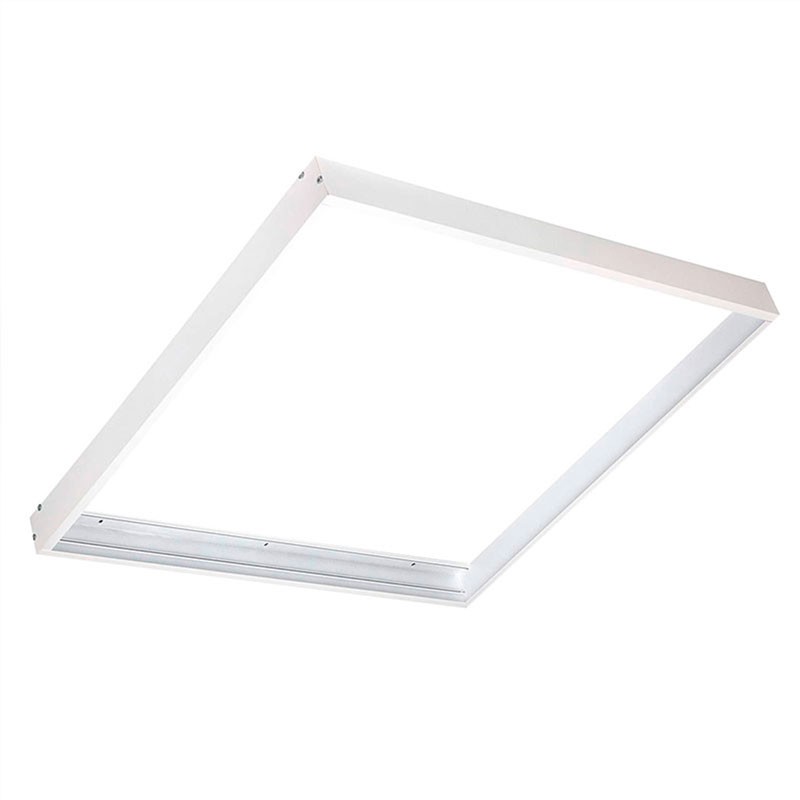

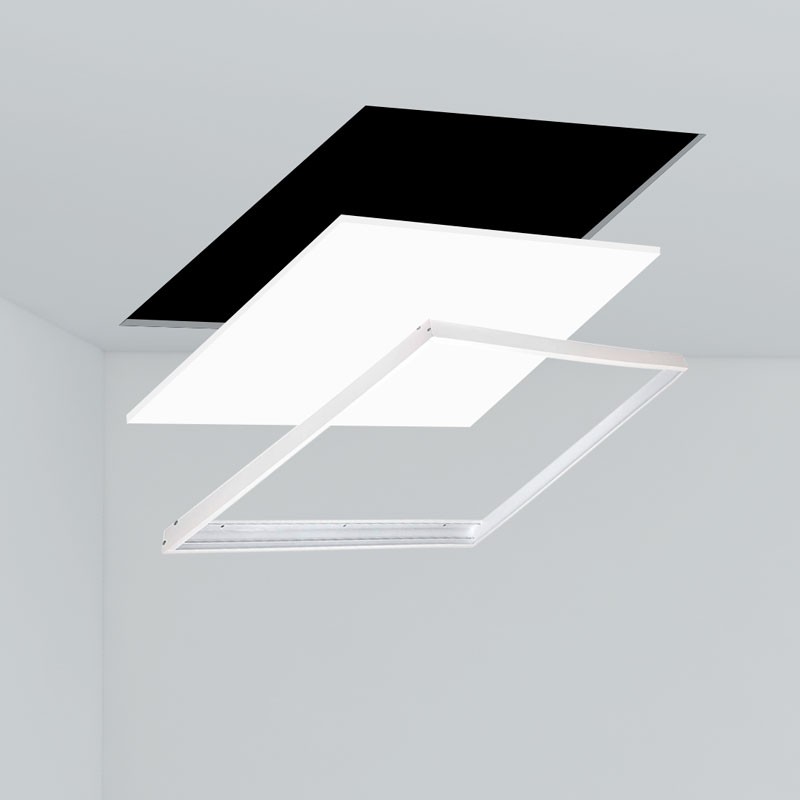

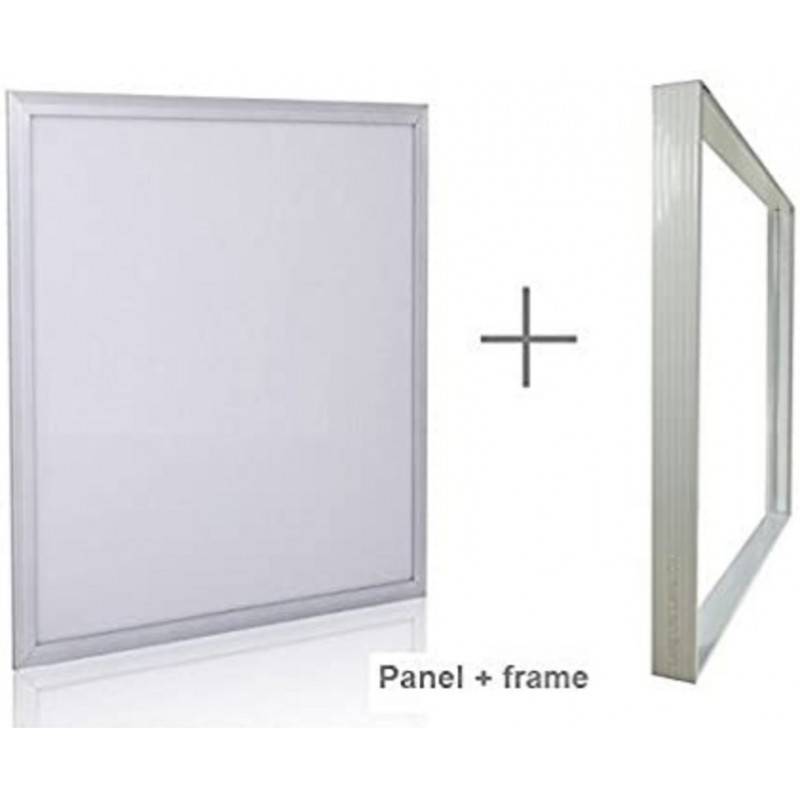

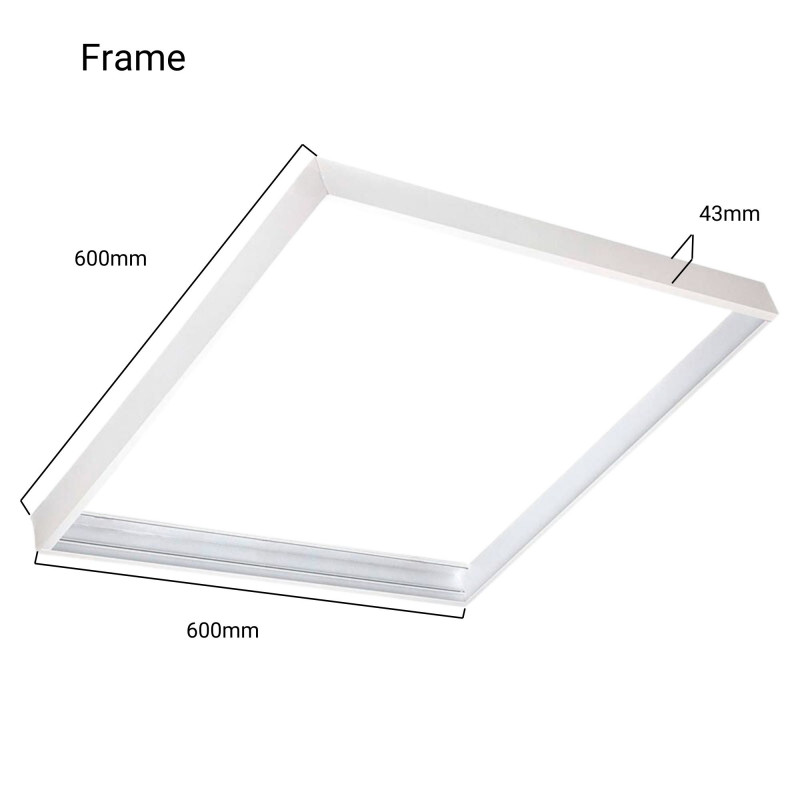

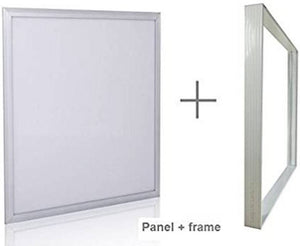

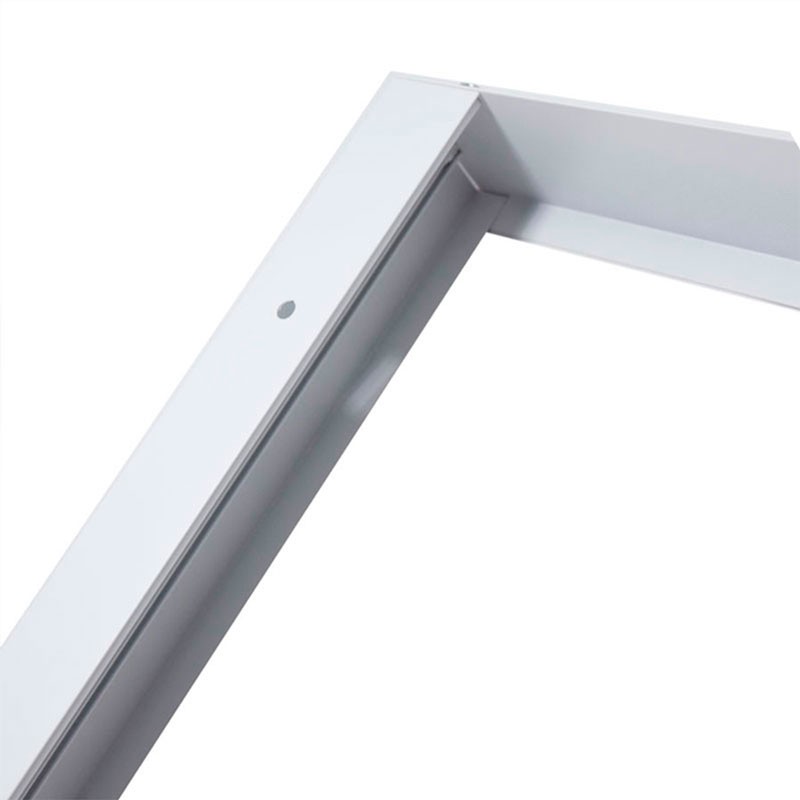

60x60cm slim CCT LED panel kit (Reference B5235-3CCT) + surface mounting frame (mounting accessories included).

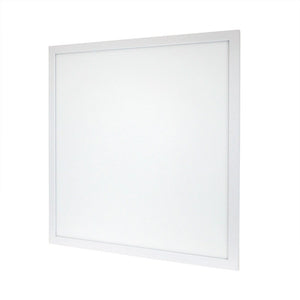

The panel has an ultra-slim, modern and elegant design, adaptable to any environment.

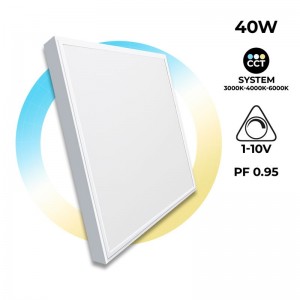

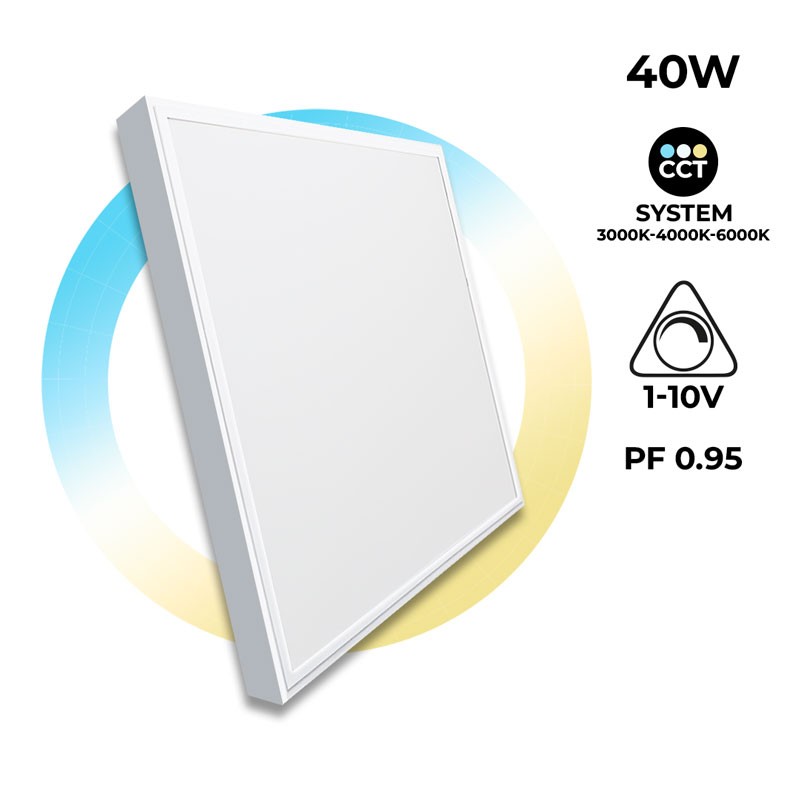

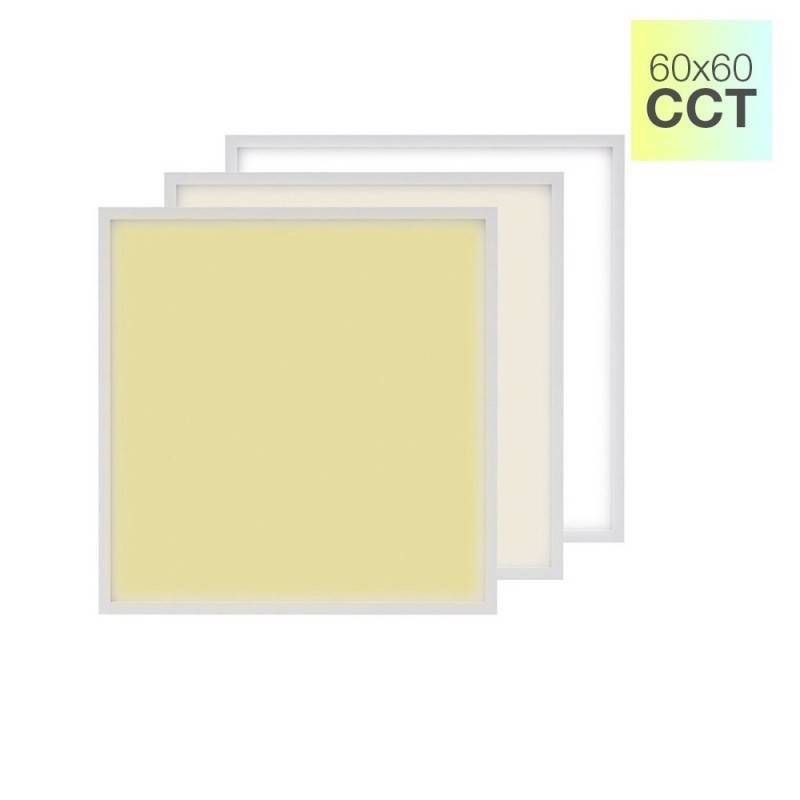

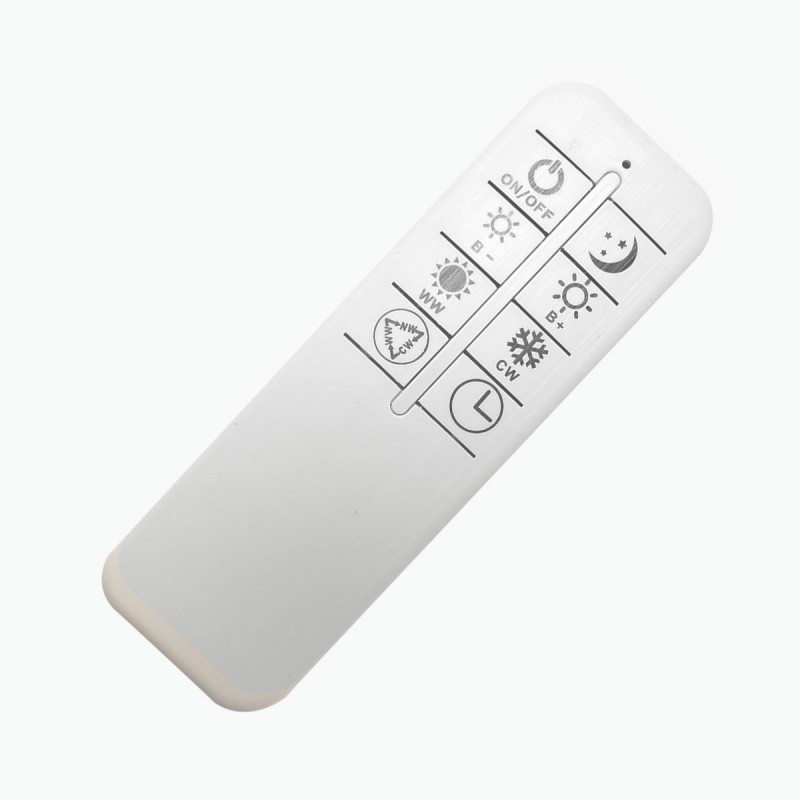

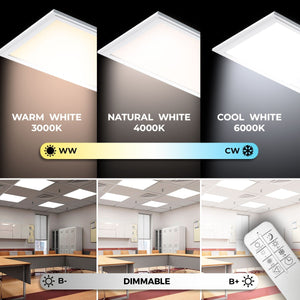

The lighting is controlled by a remote control and it is possible to select both light intensity and color temperature from warm white (3000K) to cool white (6000K), according to the needs of each space or circumstance. An unlimited number of panels can be controlled with the remote control.

To synchronize the remote control with one or more panels, the driver(s) must first be powered from the mains and then the ON/OFF key must be pressed constantly for a few seconds.

Its high color rendering index, CRI>80, makes it possible to reproduce colors with high fidelity, similar to natural light.

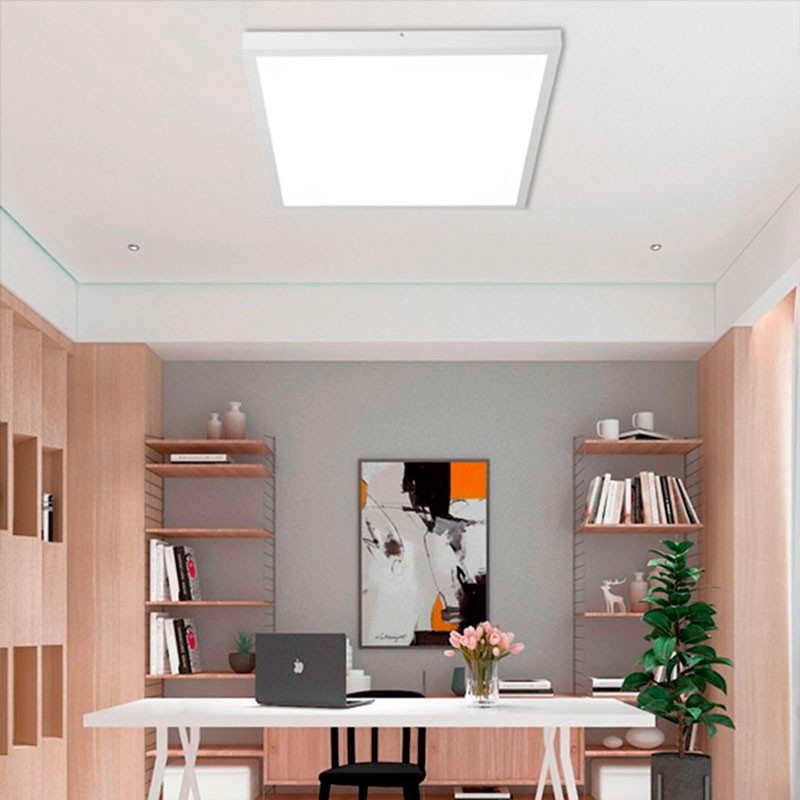

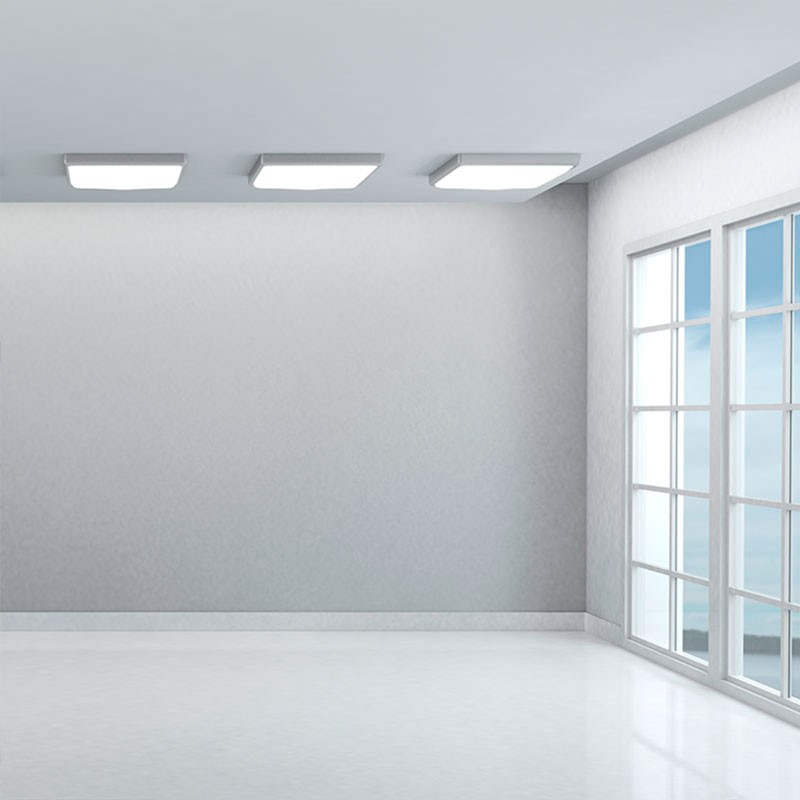

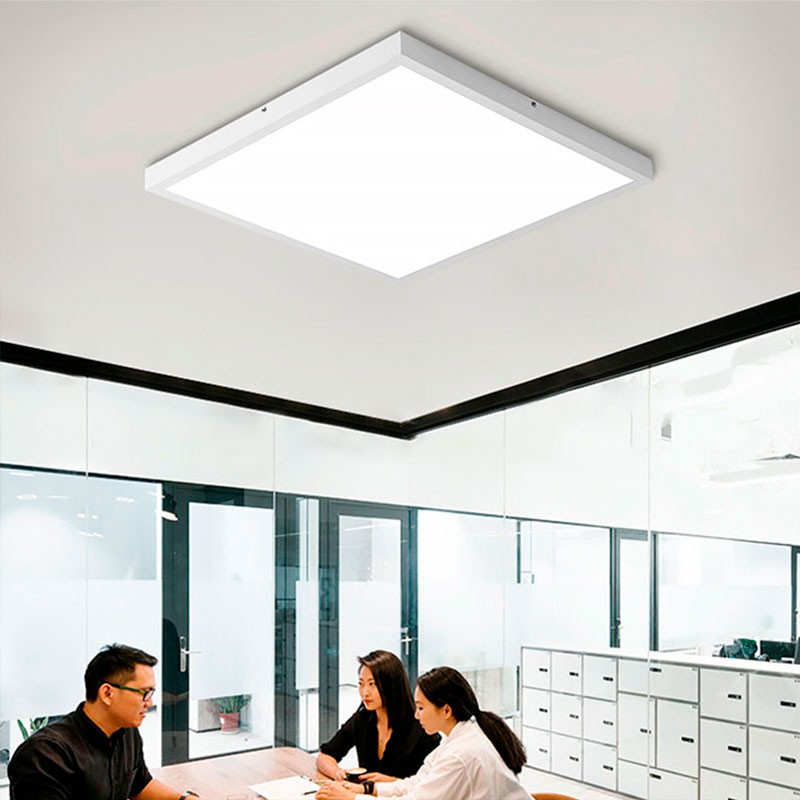

Its applications are varied and it can be installed both at home and in offices, offices, stores, hotels, health centers, etc.

Main features of the product:

  • Remote control (requires 2 AAA batteries - not included).
  • CCT system: dimmable color temperature with remote control

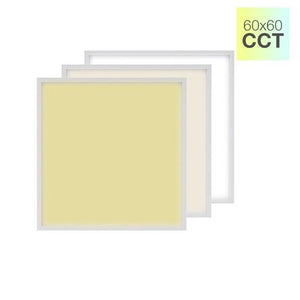

  • Shade: warm white (3000K), neutral white (4000K), cool white (6000K)
  • Dimmable light intensity
  • Voltage: 220-240 V/AC
  • LED type: SMD4014
  • Power: 40W
  • Lumens: 4000 lm
  • CRI >80
  • Indoor use: IP20

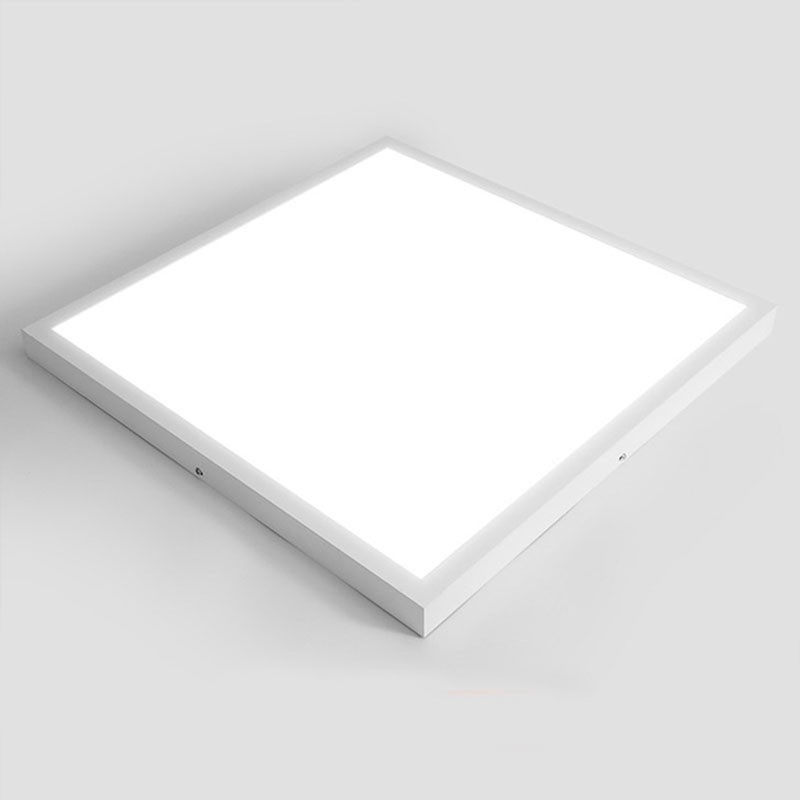

  • Surface mounting

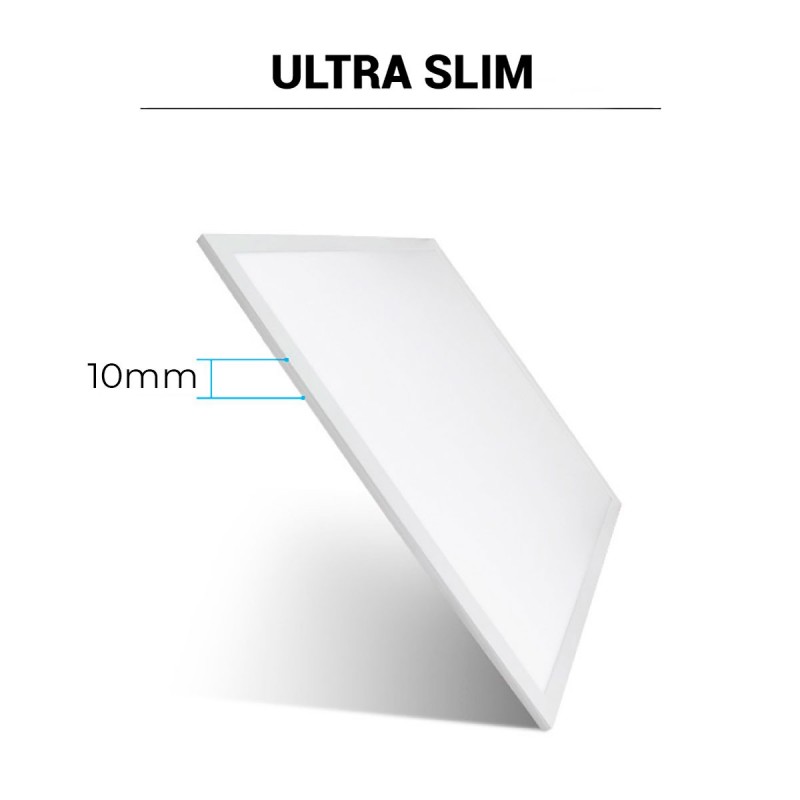

  • Dimensions: 595 x 595 x 10 mm

Please note that certain technical characteristics such as lumens or CRI may vary according to the color/shade of the product. For further details, please consult the test reports attached in the "Downloads" section, or contact our sales advisors.

Nominal Voltage (V)
220 - 240 V/AC
Kelvin (K)
3000
4000
6000
Lifetime (h)
25000
IP
IP20
Frequency (Hz)
50 - 60
Hue
CCT
Efficiency (Lm/w)
100
CRI
80-85
LED Type
SMD 4014
Dimmable
Yes

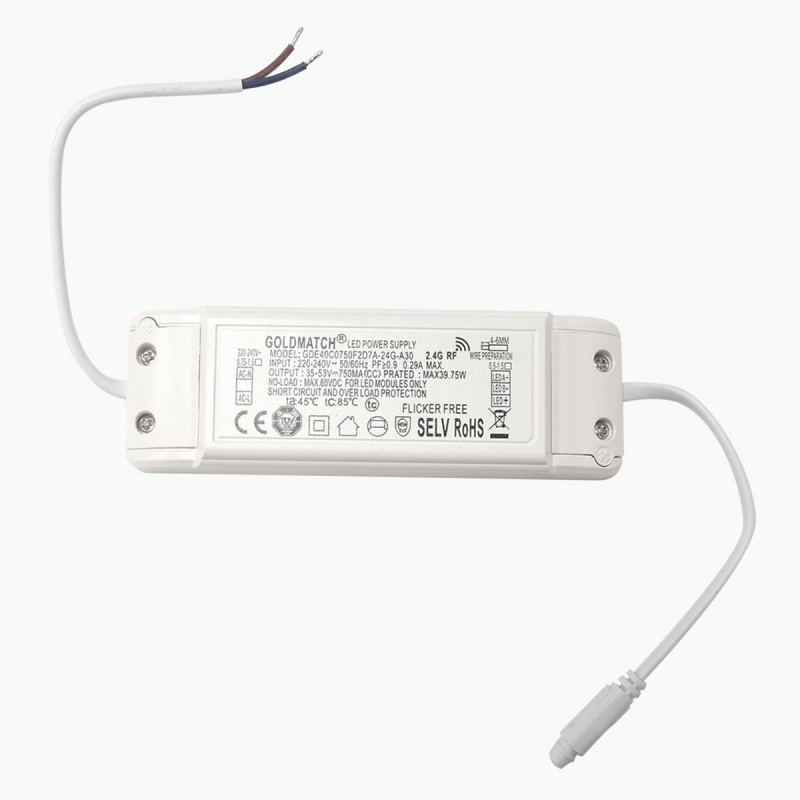

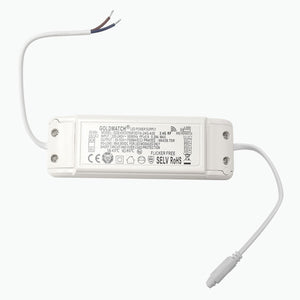

Driver
Goldmatch
Material
Aluminium
Diffuser material
Polycarbonate
Use Outdoor
No
Energy efficiency class
A+ (2021)
Certificates
CE
ROHS
Warranty
According to legal guarantee: 2 years
LED Panel dimensions
60x60
Barcelona LED

Questions

P: Question: Hello good morning, I would like to know if once chosen the intensity and color of light through the remote control, it remains memorized. And when turning on and off the switch is maintained. Thank you in advance. Greetings.
R: Answer: Hello, this panel does have memory, that is, if you turn off the power with a switch or with the remote control included, when you turn it on again it lights in the same way it did before being turned off. Thank you very much!

Barcelona LED: Sergi| 10/10/2024

P: Question: Good,

A little over a year ago I bought this model of panel (I think it was this, at least the photos and what appears in the description looks the same) and you told me that at that time you had no stock of the remote but that you would have it again. I have looked several times on the web and I have not seen stock, in fact, now I do not get the controller that comes out in the pictures on the web, at least I can not find it. Do you have any control compatible with these panels? I have a CCT function that I can not use today. Is there anything that can be done?

Regards
R: Answer: We have a replacement driver and controller model for RGB that may work. (The CCT model with previous controller is not in stock).
