SKU:K-B1050-RIGHTARROW
€21.99 Tax included
Has superado el límite de unidades
In stock 487 unidades

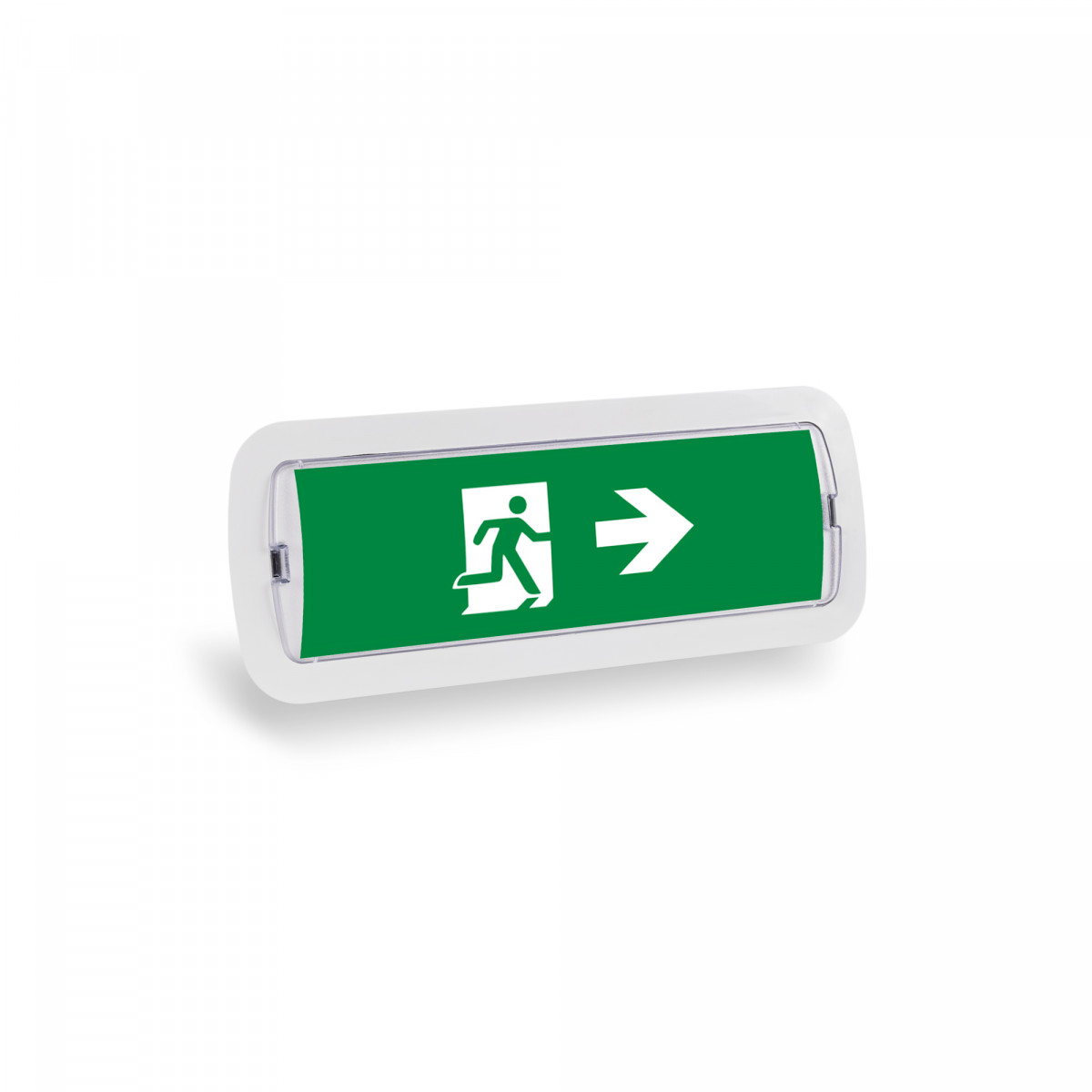

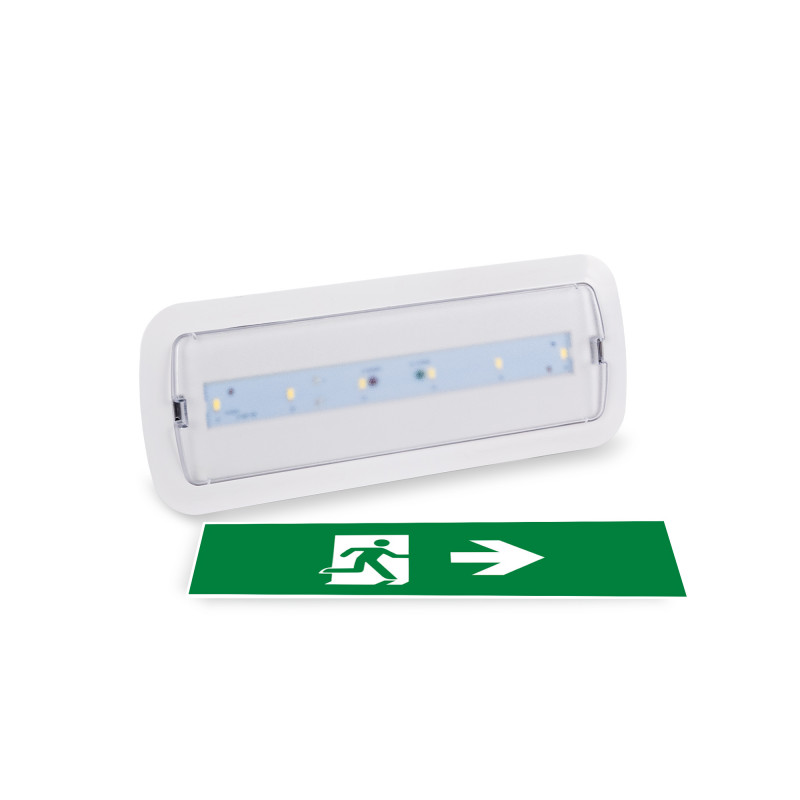

KIT - "Right arrow" pictogram sign + emergency light.

The luminaire has a power of 3W and a luminosity of 250 lumens. The light source is permanently on, both in the presence or absence of power supply.

It can be surface mounted or recessed.

Reliable and effective lighting

This emergency light stays on at all times, ensuring safe and constant illumination in low daylight situations or in the event of a power failure.

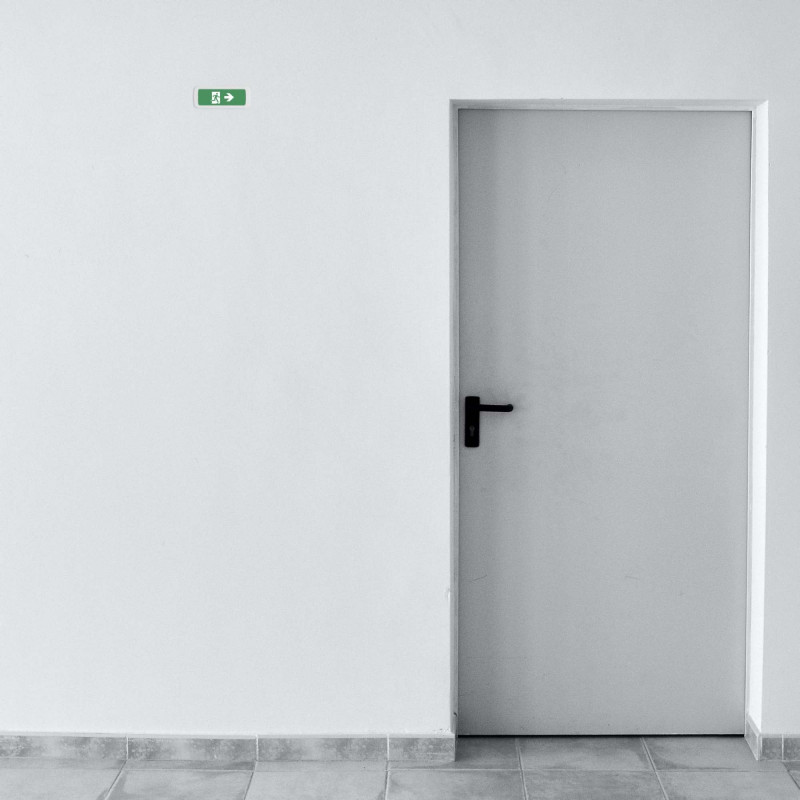

It incorporates a self-adhesive sign that can be easily applied to the light fixture, enabling clear indication of the exit's location during critical moments.

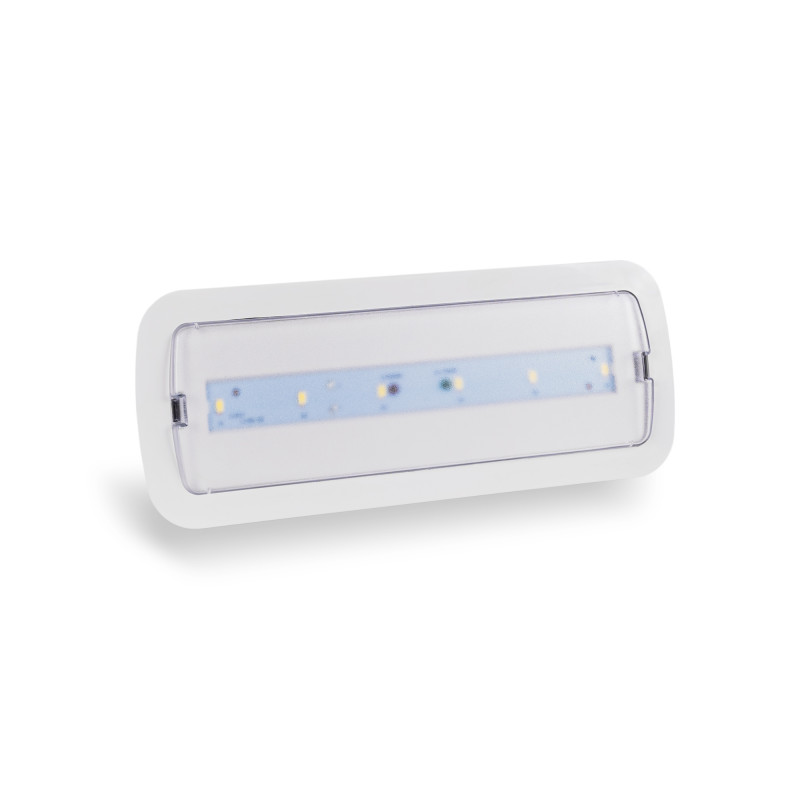

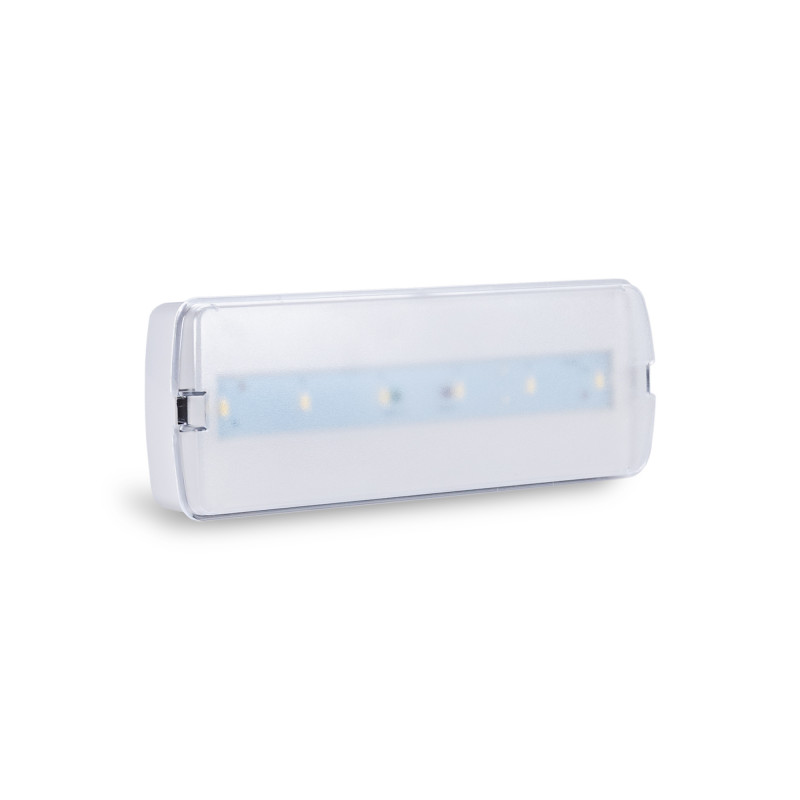

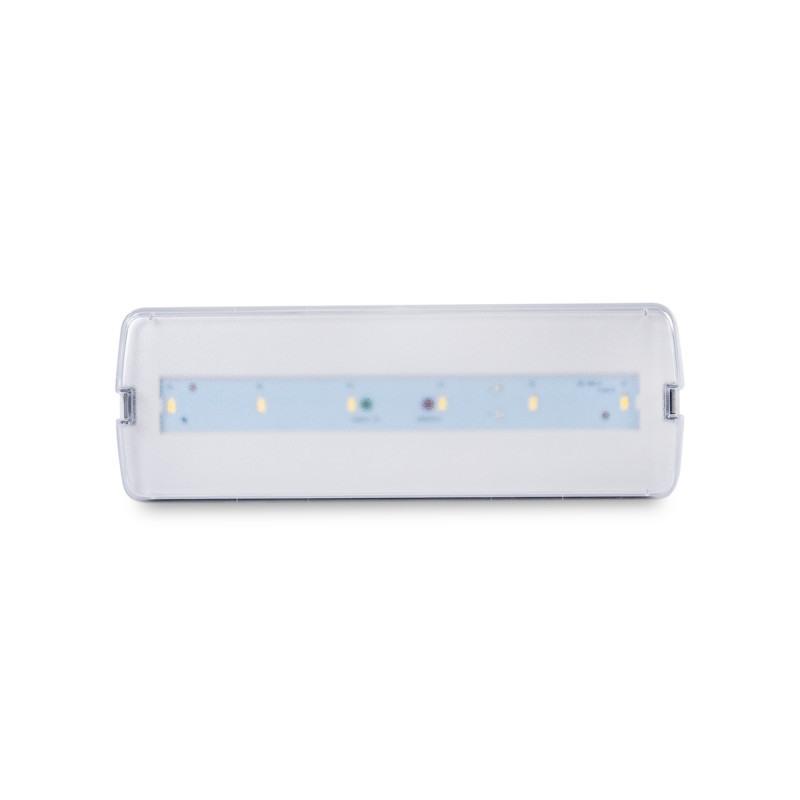

The luminaire is made of ABS (acrylonitrile butadiene styrene), a shock resistant material. It incorporates SMD5730 LED chips that ensure clear and intense illumination, even through the self-adhesive sign, with a luminous flux of 250lm and a cool white light (6500K).

The light is not permanent; instead, it automatically turns on in case of a power failure and has a 3-hour battery life.

Through an LED indicator, it's possible to know if the device is in operation (green color) or if the battery is charging (red color), making it easy to monitor its status.

Installation

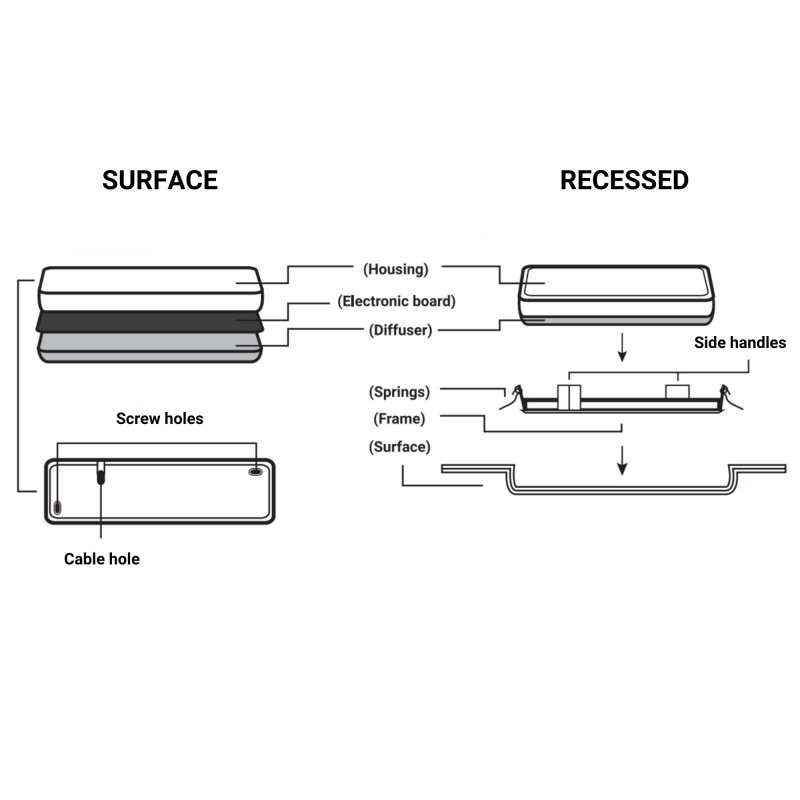

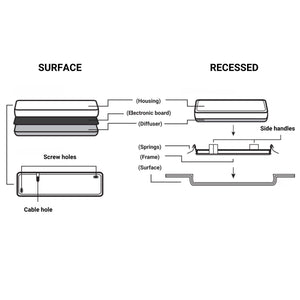

This emergency light can be installed in two ways:

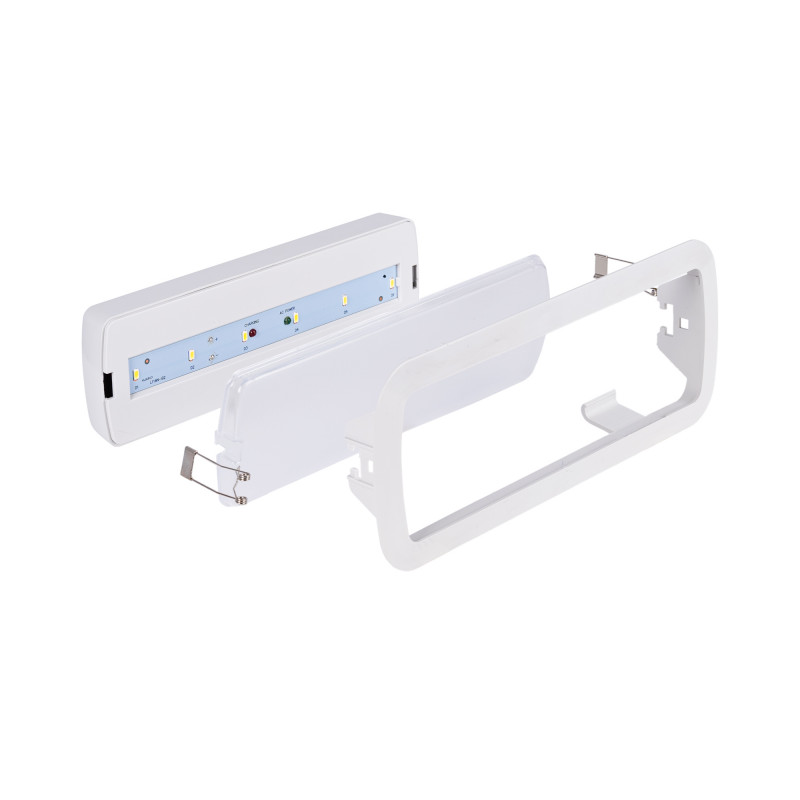

Recessed: replacing an old luminaire or making a new hole. Once the cutout and wiring connection is done, the luminaire is easily inserted and fixed by means of its two lateral flaps.

Surface: it requires the wiring connection on the wall or ceiling. The frame that carries the luminaire for recessed installation must be removed prior to surface installation.

It includes all the necessary elements for mounting.

Precautions during installation:

1) Disconnect power during installation.

2) This product should not be installed in outdoor, humid, corrosive gas, etc. places.

3) This product should be used on a separate power circuit. It should not share circuit with lighting or other electrical equipment (with switch), to ensure that the battery can be recharged normally.

4) To ensure that the product is working normally, it should be checked periodically.

5) The device should be charged for approximately 20 hours before the first use.

6) If the device is stored or not used for a long time, it should be charged and discharged once every three months to protect the battery performance.

Applications

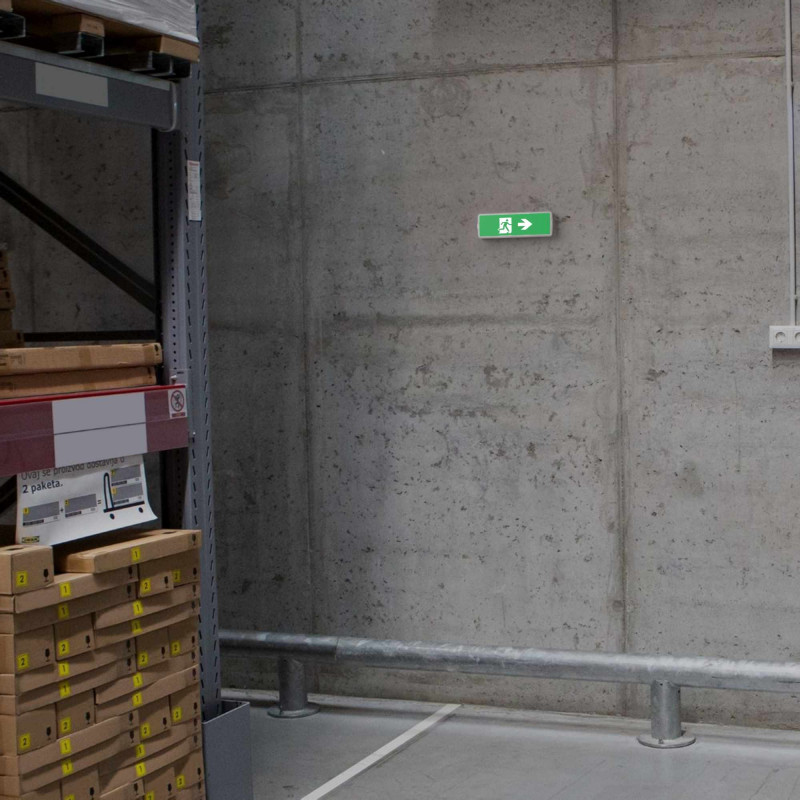

  • Stores, businesses and offices.
  • Schools and universities.
  • Health facilities.
  • Entertainment centers.
  • Industrial facilities.
  • Public places.
  • Sports facilities.

Product features:

  • Material: ABS
  • Rated voltage: 220-240V AC
  • Lumens: 250lm
  • Surface or recessed installation
  • LED indicator for mains presence and battery charging
  • Ni-Cd battery
  • Color: white
  • Shade: cool white (6500K)
  • IP20

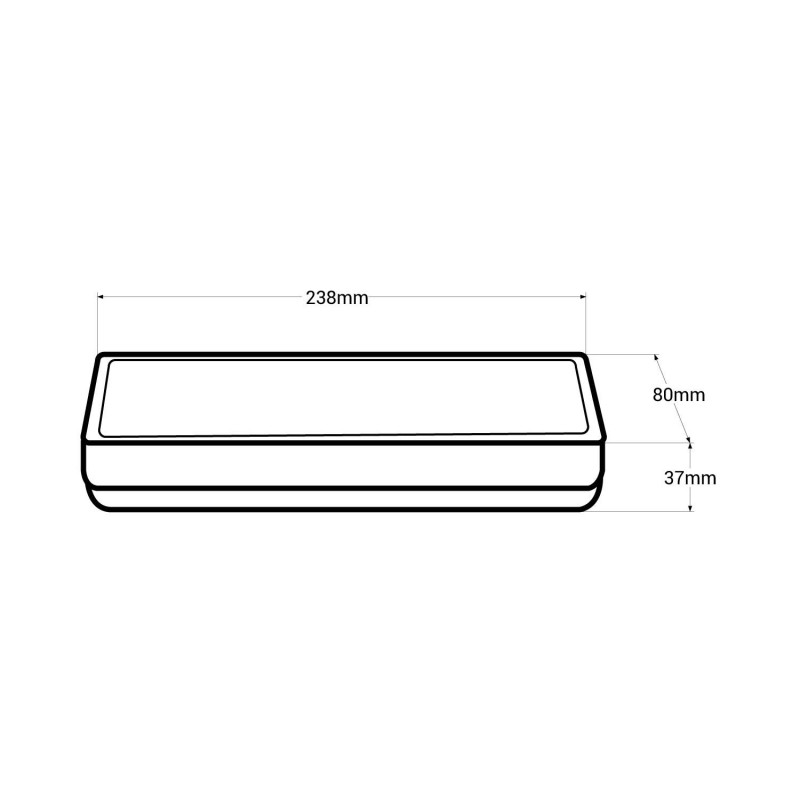

  • Surface dimensions: 238 x 80 x 37mm
  • Recessed dimensions: 265 x 106 x 40mm
  • Cutout dimensions: 250 x 90mm
  • Easy installation

Nominal Voltage (V)
220 - 240 V/AC
Power (W)
3
Lumens (Lm)
250
Kelvin (K)
6500
IP
IP20
Frequency (Hz)
50 - 60
Hue
Cool white
LED Type
SMD 5730
Mounting
Surface
Certificates
CE
ROHS
Warranty
According to legal guarantee: 2 years
